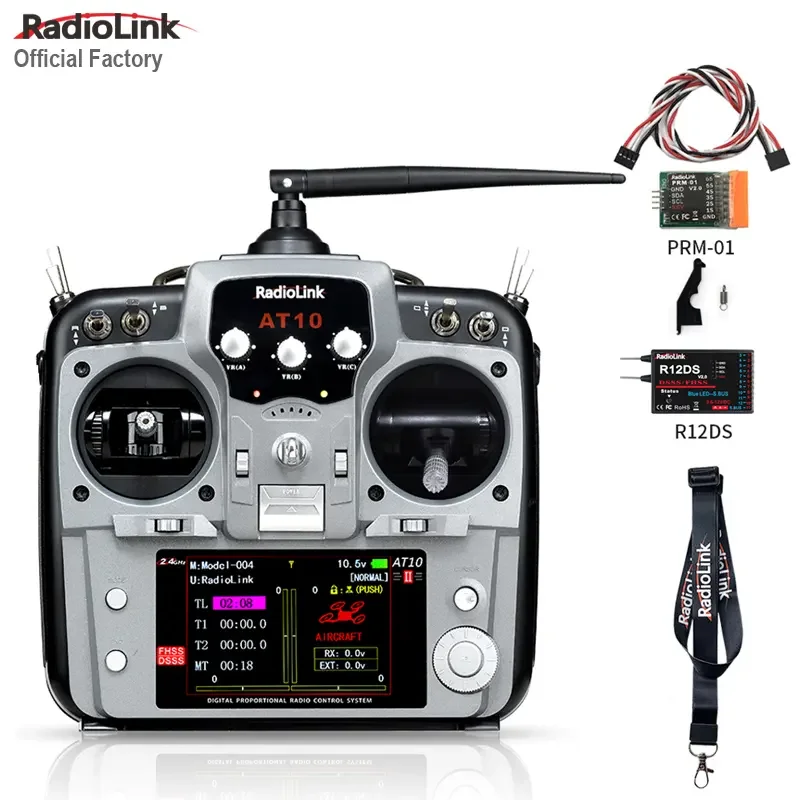

AT10II Transmitters Specifications

Product Name	AT10 II 12 Channel Radio
Dimension	18095220mm (7.1”* 3.7”* 8.7”)
Battery Case Dimension	1153230.5mm(LWH=4.53″1.26″1.2″)
Weight	0.95kg(2.1 lb)
Frequency	2.4GHz ISM band (2400MHz to 2483.5MHz)
Modulation Mode	QPSK
Channel Bandwidth	5.0 MHz
Spread Spectrum	DSSS&FHSS
Adjacent Channel Rejection	>38dbm
Transmitter Power	<100mW (20dbm)
Operating Current	105mA
Operating Voltage	7.4~15.0V(8pcs AA batteries, LiPo battery(2S-4S), 18650 Lithium, Li-ion, NiMH or NiCad battery)
Control Distance	more than 4000 meters air, the actual control distance depends on the flying environment
Channel Quantity	12 channels, all 12 channels can be customized
Signal Output	PWM/SBUS/PPM
Adaptable Models	include all 120 degree and 90-degree swash-plate helicopter, all fix wings, glider, multirotor, RC car, RC boat and Robot
Simulator Mode	Yes, with radio frequency off to save battery power
Screen	3.5 inches 16 colorful screen, 320*480 pixels
Storage Model Quantity	15
Support receivers	sells with R12DS(SBUS&PWM), R12DSM, R9DS, R6DS, R6DSM

Product Description

Radiolink is the first RC equipment manufacturer to introduce DSSS* and FHSS* that operate side-by-side to help reduce overall signal interference. These features allow the AT10 II to produce a highly constant and stable transmission signal present on all 12 channels.
Quadrature phase shift keying transmits two information bits, combined as one symbol, for a stable transmission signal.
Control distance: 2.5 miles (4km) on air. (Actual control distance depends on the flying environment)
Lower signal noise with a channel Bandwidth* of 5.0 MHz, RF power output is over 100mW for a stable response. The AT9S is an excellent choice for Professional Aerial, Agricultural and Industrial drones.

*DSSS(Direct Sequence Spread Spectrum)
*FHSS(Frequency Hopping Spread Spectrum)
*Bandwidth: The difference between the upper and lower frequencies in a band of frequencies.

The AT10II uses 2400MHz to 2483.5MHz.

R12DS 12CH Receiver Specifications

Dimensions	503214.5mm (1.97″1.24″0.57″)
Weight	14g (0.49oz)
Channels Quantity	11 channels for PWM signal output, 12 channels for SBUS&PWM signal output
Signals Output	PWM/SBUS&PWM
Operating Voltage	3.6~12V
Operating Current	38-45mA@5V
Section Precision	4096, 0.25us per section
Control distance	4000 meters(2.49Miles) in the air, 2000 meters(1.24Miles) on the ground (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations)
Compatible with extended telemetry module	PRM-01 and PRM-03

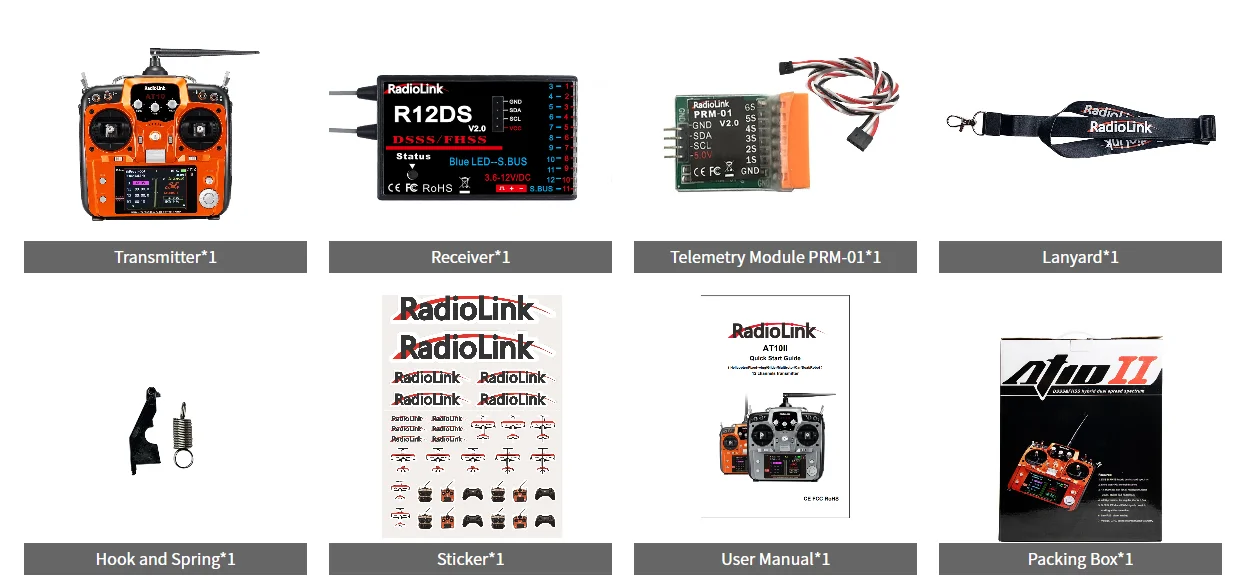

Package include R12DS 12CH Receiver
12 channels PWM/SBUS signal output receiver, support high voltage servo(3.6-12v), outstanding control range.
How to bind: press the Bind Button 1 second and release, the R12DS keep light.
Change Signal: press the Bind Button 2 times within 1 second.
Please make sure your AT10II Menu SYSTEM—CH-SELECT: 12CH

* Working Voltage: 3.6-12V
* Size:50*31.5*14 MM
* Weight: 0.031Lb
* *Sold Separately ASIN: B01KX3IVOK

PRM-01 Telemetry Module

Size	332211mm (1.3″0.87″0.43)
Weight (with wire)	7g (0.25oz)
Voltage Input Range	1S~6S LiPo Battery
Control distance	same as the receiver control distance (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations)
Compatible receiver	R12DS, R9DS (Old version receiver: R10DS, R10D, R9D)
Compatible transmitter	AT10II/AT10/AT9S Pro/AT9S/AT9

Package include PRM-01 Telemetry Module

Real-time model data feedback allows users to receive crucial information on the model’s systems. When paired with flight module PRM-01, model voltage is displayed. Configurable sound/message/vibration alarms signal potential problems when low model voltage. A low model voltage alarm value can be customized.

Weight of 7g (0.25oz) and small size of 33*22*11mm (1.3″*0.87″*0.43) make PRM-01 is tiny enough even for mini racing drone and glider.

	AT10II	AT9S Pro	T8FB BT	T8S BT
Channels	12 Channels	10/12 Channels	8 Channels	8 Channels
Signal Output	PWM/PPM/SBUS	PWM/PPM/SBUS	PWM/PPM/SBUS	PWM/PPM/SBUS
Control Range	2.5 Miles	2.1 Miles	1.2 Miles	1.2 Miles
Dimensions(LWH)	7.13.78.7 in	7.23.97.6 in	6.848.1 in	6.43.72.2 in
Weight	33.5 oz	31 oz	16.6 oz	5.0 oz
Package	AT10II/R12DS/PRM-01	AT9S Pro/R9DS/Strap	T8FB/R8EF	T8S/R8EF
Model Support	Glider, Airplane, Multirotor, Helicopoter, Car, Boat, Robot etc	Glider, Airplane, Multirotor, Helicopoter, Car, Boat, Robot etc	Glider, Airplane, Multirotor, Car, Boat, Robot etc	Glider, Airplane, Multirotor, Car, Boat, Robot etc
